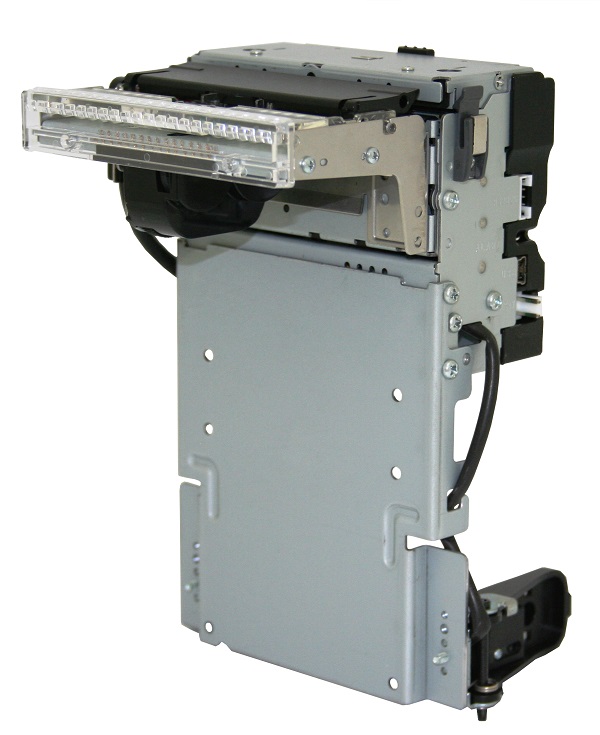

NIPPON NP-KV20

NP-KV20 is a reliable, flexible and price aggressive kiosk printer. The innovative mechanical structure allows to secure the print head in 3 different positions, so that the printer can be mounted horizontally, tilted or vertically. A wide range of accessories allows the NP-KV20 to adapt to the specific requirements of the application. In fact, there are available presenters with or without lighting, bezel with illumination and / or paper presence sensors and a large roller support with built-in paper tire.

• Horizontal, inclined or vertical mounting
• Speed ​​200 mm / sec
• Openable and accessible head for easy and fast maintenance or cleaning.
• Different models of paper presenter, bezel, optional large paper roll holder
• Extremely compact to reduce the depth of the kiosk.
• USB and RS232 interfaces
• Paper thickness up to 145 microns and black-mark sensor
• Operating temperature -20 to 60 degrees, also suitable for out-door use

Nippon NP-KV20
TECHNICAL SPECIFICATIONS

• Model: NP-KV20
• Printing method: thermal
• Print speed: max. 200mm / sec
• Paper Width: 58 mm
• Printing Area: 54 mm
• Resolution: 8dots / mm (203dpi)
• Number of dot per line: 432 dots
• Paper thickness: 59 to 145 micron
• Roll Diameter: max. 90mm default, with outer diameter max. 200 mm
• Sensors: paper presence, NES,( Near End Detector), black mark
• Characters: International, English, Polish, Russian, Scandinavian, Turkish, Chinese, Korean and Japanese
• Bar Codes: UPC-A / UPC-E / JAN8 (EAN8) / JAN13 (EAN13) / CODE39 / ITF / CODABAR / CODE128 / CODE93 / GS1 DataBar / QR code (model2) / Linked QR code
• Interfaces: USB V2.0 Full Speed and RS232C
• Cutter: Total or partial cut
• Drivers: Windows, EX Drivers, DS Drivers, Linux CUPS Drivers, OPOS Drivers, Library for Android
• Power supply: 24V
• Operating temperature: -20 + 60 °
• External dimensions: in horizontal configuration 97.6 (W) x 118 (D) x 81.4 (H) mm

APPLICATIONS

• Kiosk
• Queue management
• ATM
• Parking lots
• Gaming
• Instrumentation
